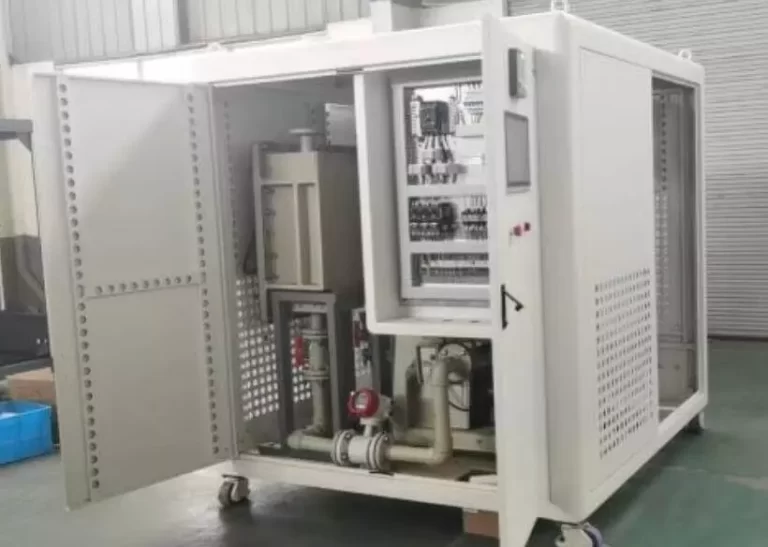

advanced oxidation waste water treatment system

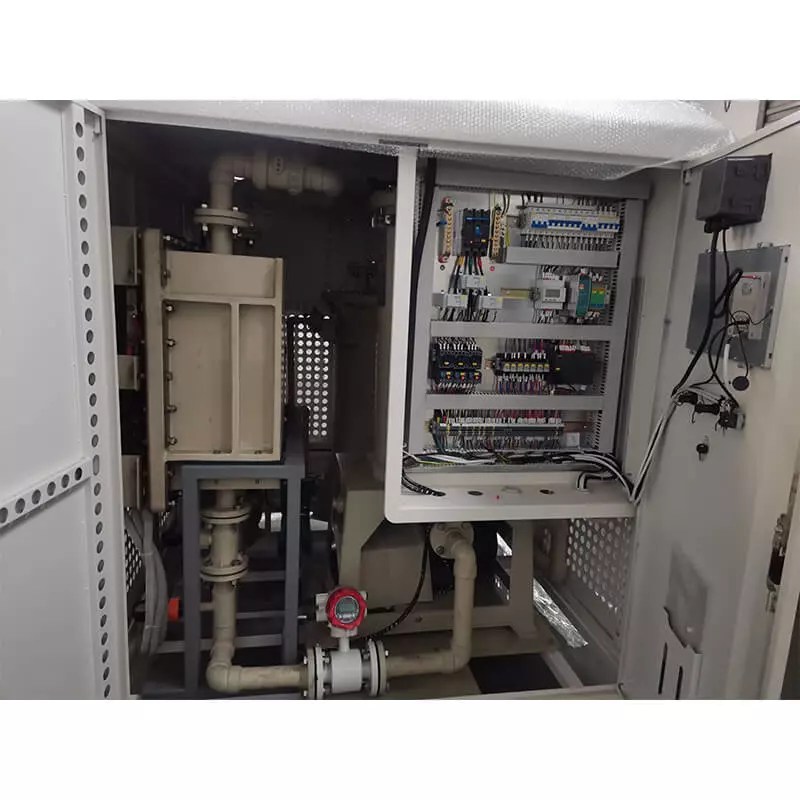

BDD Integrated Treating Module (1)

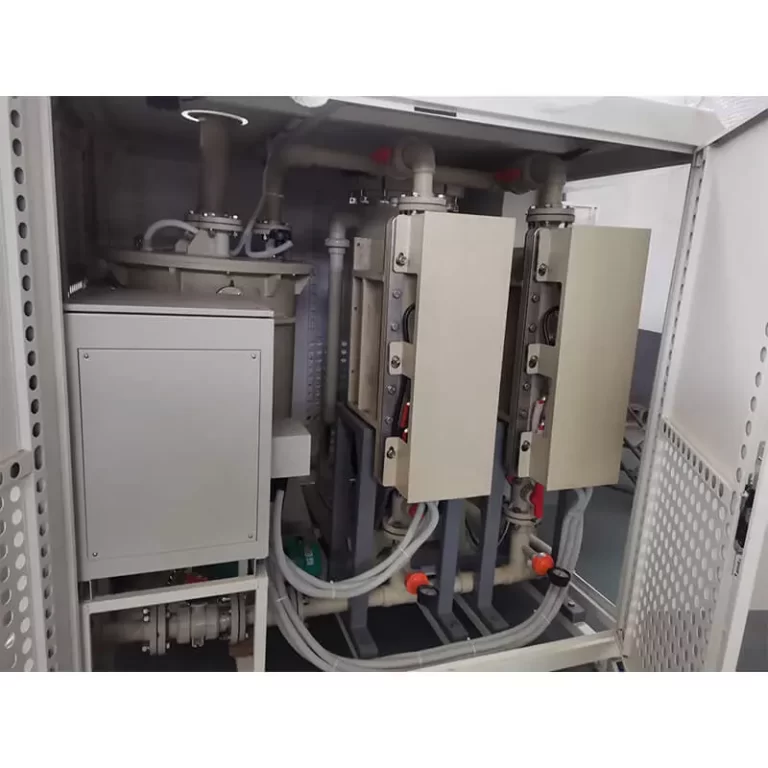

boron-doped diamond waste water treatment module wastewater treating
boron-doped diamond waste treating module wastewater treatment bdd

Advanced Oxidation Water Treatment System EQ175S

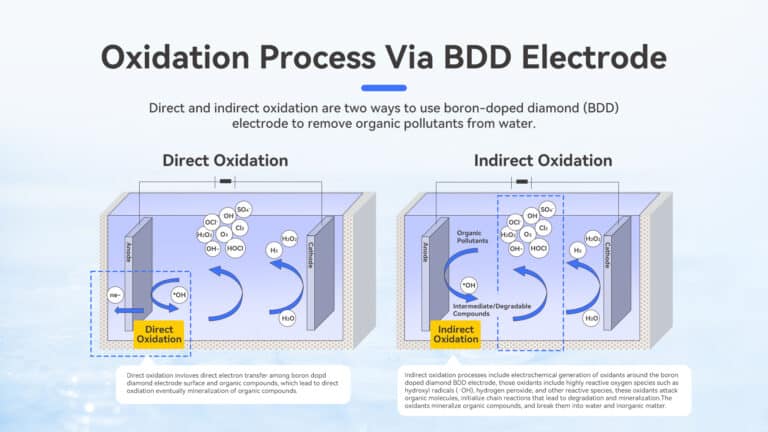

Water treatment system EQ175S utilizing exclusive advanced electro-oxidation technology to generate powerful oxidizing agents such as hydroxyl radicals, Ozone, Hydrogen peroxide inside its module electrolyzer, resulting in rapid decomposition of refractory organic contaminants, mainly for tertiary wastewater treatment and alternative treatment method to complete mineralization of bio-refractory organic pollutants.

Send enquiry
Contact Us
Product Description:

Introducing Advanced Oxidation Water Treatment System EQ175S



Advanced Oxidation Water Treatment System EQ175S Specifications

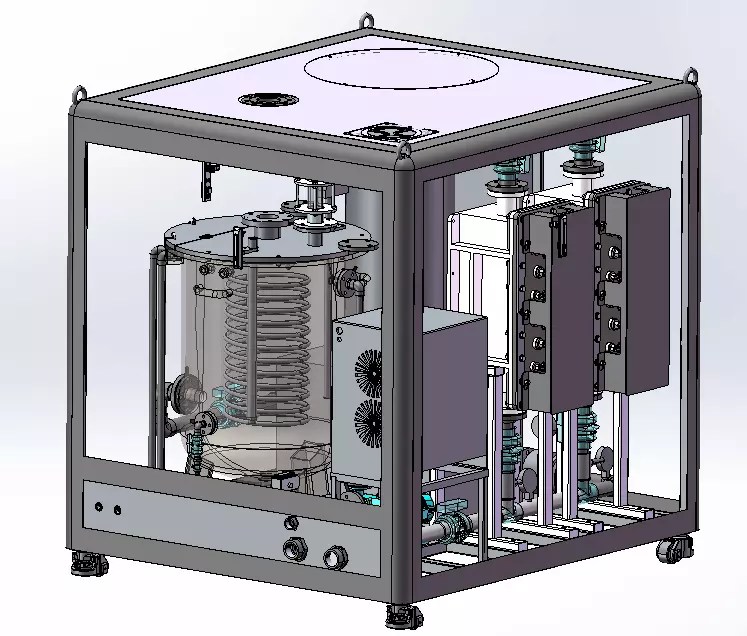

advanced oxidation water treatment system EQ175S closer view

Electrode Assembly:

Anode: Boron doped diamond BDD Electrode (Silicon Substrate)

Boron Doped Diamond Anode Dimension: 240*130*3 mm

BDD Anode Quantity: 28 pieces

Cathode: Titanium Electrode

Dimension: 324*150*1.5 mm

Quantity: 32 pieces

Sealed Active Area: 16800 cm2

Designed Circular Flow: 20 m3/h

Input Voltage: AC 380V/50Hz

Power Output: DC 1000A/20V

Current Density: 55-100 mA/cm2

Circulation Tank Volume: 0.23 m3

Usage Protection: Over Heat/Pressure;High/Low Liquid Level

Cooling Capacity: 9 Kw

Air Output ≥1200 m2/h

Overall Dimension: 2000*1800*2000 mm

Net Weight: 2000 kg
